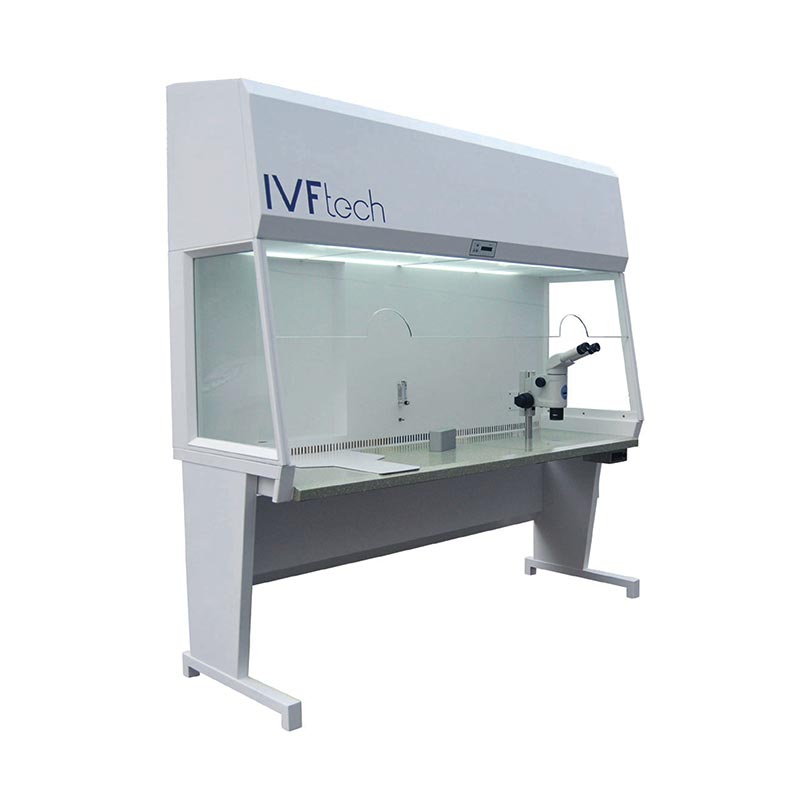

Sterica

Sterica cabinets are designed to protect the samples with a constant flow of clean air and is manufactured to meet the specific requirements of IVF Laboratories. It is designed to provide a vertical laminar flow of clean air covering the whole surface area. The Sterica is suitable for all your IVF laboratory needs including vitrification, ICSI manipulation, sperm collection and all IVF routine work.

Request a Quote

Talk to a Specialist

Overview

Features include a timer to switch the fan and heated surfaces automatically on/off. Accommodates all major brands of microscope. Choice of oculars, one for the front window or a secondary window inside the cabinet, which allows the front window to be closed. (Although this is not mentioned on the order form) The specially designed laminator or diffuser enables uniform airflow 0.32m/s at lower fan speeds, providing not only less turbulence but saves on energy and increases the lifespan of the HEPA filter. The Sterica cabinets can be customized to your specific requirements with a choice of 6 sizes, unheated or heated and prepped for microscopes with fixed or electrically adjustable stands.

Options

Sizes: 90, 120, 150 and 180cm
Heights: 700-750mm, 800-850mm, 900-950mm and 705-1100mm

Electrically adjustable stand

Options table top:

Stainless steel or Himacs® table top
Standard heated area 450 x 650mm
Full heated area 450 x 830mm
Extra heated area 450 x 200mm
Extra heated area 450 x 400mm
Witness preparation flush with surface
Anti-vibration platform

IVFtech heated glass Ø45mm Ø60mm

Table top integrated incubator
Gas Mixer
Shelf for Gas
Warming Blocks
Cooling System
Shelf and Drawer Options

Key Features

Low noise level – <51 dB(A): Sterica cabinet has been designed to give you the lowest noise level on the market

Filtration: Class H-14 HEPA filters in accordance with EN 1822. Filter efficiency 99.999% against 0.3 μm particle size. 99.995% in MPPS. HEPA filters are protected by a carbon pre-filter for a longer life.

Easy to use
Easy to service
Easy to clean
Hi-Macs® table top option
Low noise level
Air speed variation of only +/- 10%
meaning a quieter, economical fan.
Unrivalled variety of options
Ergonomic sloping front

Specifications

Sterica model	90 Unit	120 Unit	150 Unit	180 Unit
External dimensions (DxWxH)	695x1015x1240mm	695x1320x1240mm	695x1625x1240mm	695x1930x1240mm
Internal dimension (DxWxH)	560x950x635mm	560x1255x635mm	560x1560x635mm	60x1865x635mm
Product weight	140	150	180	190
Shipping dimensions (WxDxH)	1650x900x1600mm	1650x900x1600mm	2200x900x1600mm	2200x900x1600mm
Shipping weight / volume	250kg / 2.0m2	260kg / 2.0m2	290kg / 2.5m2	300kg / 2.5m2
Flow rate	1260m3/hr	1680m3/hr	2120m3/hr	2515m3/hr
Carbon Prefilter dim. (WxDxH)	580x330x1.2mm	885x330x1.2mm	1190x330x1.2mm	1495x330x1.2mm
Work chamber LED light	1980 lumen	3080 lumen	3960 lumen	4840 lumen
