MiniTherm® Stage Warmer
The sleek, low-profile MiniTherm Plus Stage Warmer works with any upright microscope.
View Product
Tokai Hit Thermo Plate®
Tokai Hit original glass heater maintains stable temperature and supports the needs in different various fields such as time-lapse imaging and IVF fields.
- Strengthened glass with 10 year guarantee for glass breakage
- Plate LED Indicator visualizing the plate condition

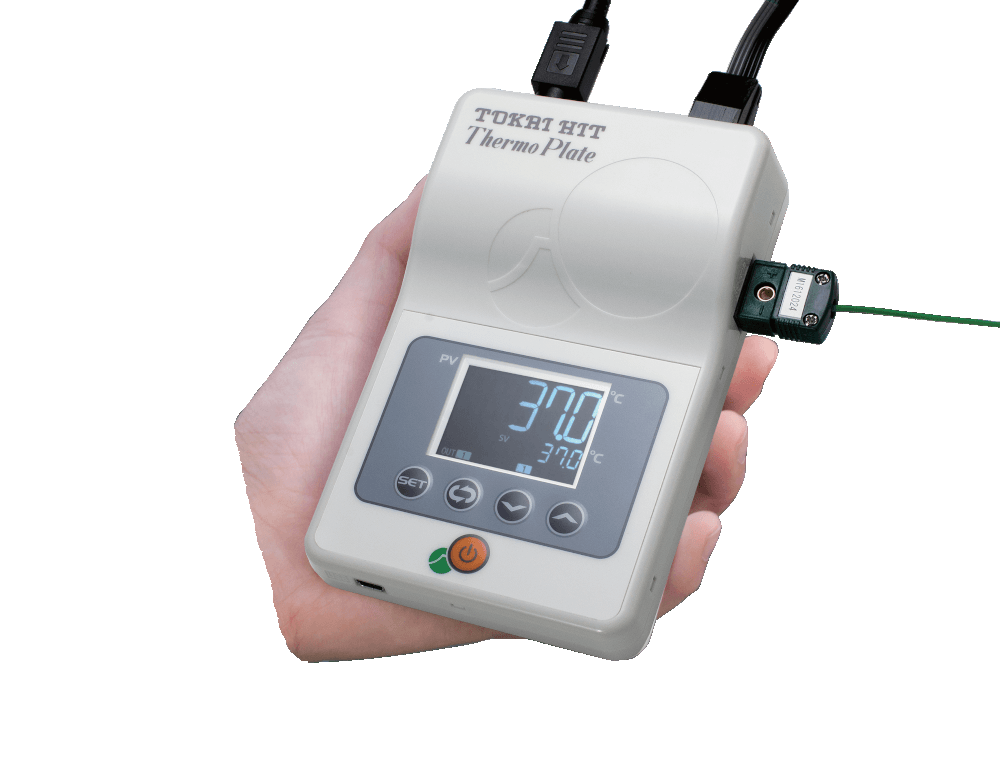

- Compact controller for space saving
- Temperature Sensor and Logging Software for Quality Control
Specifications
| Temperature Control | Method | PID Control | ||
|---|---|---|---|---|
| Increments | 0.1℃ | |||
| Setting method | Digital switch using UP and DOWN key | |||
| Maximum temp. setting | 60.0℃ | |||
| Minimum temp. setting | 0.0℃ | |||
| Controllable temp. | Ambient＋5℃ ～ 60.0℃ (TPi-UNIX：～50.0℃） | |||
| Temp. accuracy | Within 0.1℃ (Under room temp. 25℃, Plate Center, in our terms and conditions) | |||
| Sensor | Platinum resistance thermometer（Pt100Ω） | |||
| Power source | 100V～240V AC | |||
| Current rating | 1.6A | |||
| Maximum Power Consumption | 50W | |||
Features & Benefits
Miniaturize the controller to as same size as smart-phone. Very useful for space saving in the clean bench.

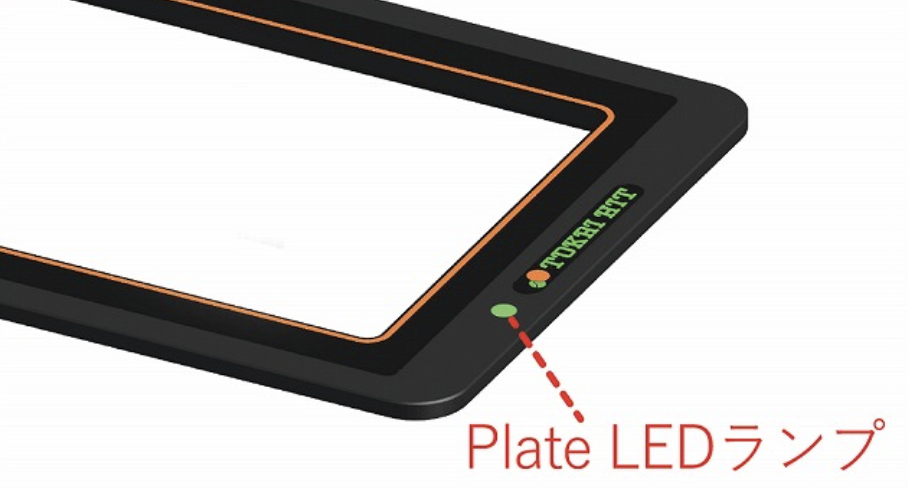

Plate LED Indicator visualizes the plate condition by not seeing the controller.
